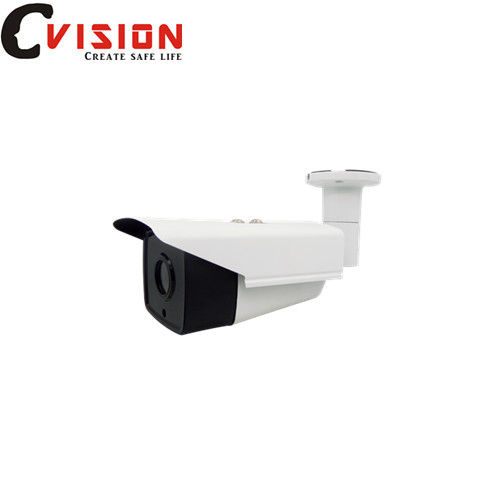

IP Bullet Camera

Camera

Model No.

CV-IW1030MF-AH24

Image Sensor

1/3” 2.0mp image sensor

Effective Pixels (HxV)

1280(H)*1080(V)

Signal System

PAL / NTSC

Mini Illumination

0.02lux(IR off) / 0.00lux(IR on)

Lens

3.6mm HD fixed lens

Lens Mount

M12

Day & Night

ICR

IR Leds

￠5X36PCS

IR range

up to 25meter

Angle Adjustment

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

AES

PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec

S/N Ratio

> 48dB（Auto Gain Off）

4in1 Function

Output Model

TVI/AHD/CVI/Analog is optional

OSD Menu

OSD cable is optional

WDR

D-WDR

DNR

3D-DNR

General

Operating Condition

-10 °C - 50 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)

Power Supply

12 VDC±15%

IP Rate

IP66

Weight

0.40kg

Dimension

185(L)x67(W)x67(H) mm
